Type ELD202 Dual Channel Portable Digital Indicator

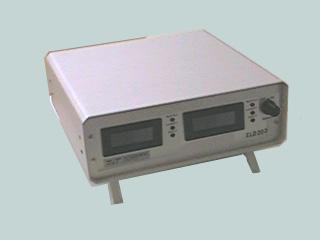

The Type ELD202 dual channel portable digital indicator is a versatile
component which can be used to indicate the tilt angles measured by any two
of the range of ELECTROLEVEL tilt transducers.
Robust circular DIN style connectors are fitted to the ELD202 giving a
long term reliable connection to the sensing head.
The ELD202 is one of a family of Signal Conditioning Units suitable for
driving the ELECTROLEVEL tilt transducers. Other units in the range
include signal conditioning units, indicators with analogue displays, with
limit relays which operate at user definable angles and units which provide
digital outputs in a variety of interface specifications.;
|SPECIFICATION                 ELD202 Dual Channel Portable Digital Indicator|
Signal Conditioning Unit
Temperature Coefficient of Scale
Zero drift with temperature
Electronic datum Adjustment Range
Operating Temperature Range to above specification
Input Power Consumption
D.C. supply and External Meter
Sensing head cable length
External DC supply
Universal mains adaptor
± 1 volt d.c. maximum into open circuit with respect to datum reference at 2.5 Volts above system ground.
± 1 mA d.c. into short circuit (short circuit protected).
(4-20mA current loop option)
0.1%/ ° C
± 0.1 degrees with 0.5 degree Sensing Head
± 1.0 degrees with 5.0 degrees Sensing Head
-15 °C to + 60 °C
will not be damaged by overranged transducer input
3 1/2 Digit LCD meter 11mm digit height.
scaled as required.
10 mA at 12V d.c.
Metal Screwlocking DIN style plug
World Standard Power Jacks
100 metres (maximum recommended)
6 to 28 volts d.c.
90/264 Volts ac 47/63 Hz
painted Aluminium non-weatherproof
265mm W x 110mm H x 250 mm D
|All specifications herein were in effect on the date of this publication. Equipment supplied however,may differ from that specificied due to Tilt Measurement's policy of continual product improvement. The equipment described herein is manufactured in the UK.|
